Connecting Fittings

Minifix cam fittings, dowels, cylinder nuts and connecting bolts. Prices on request; colour codes refer to the colour chart in the catalogue.

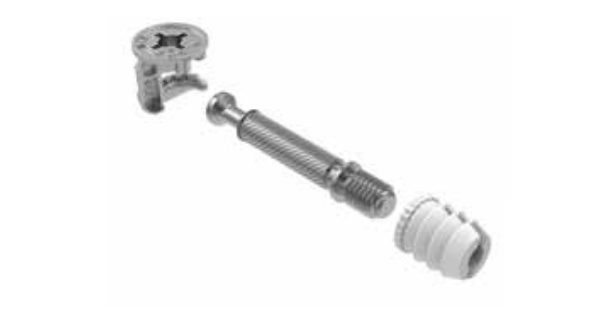

Minifix Set with Plastic Dowel

Code	Size	Pack	Colour
201-20-101	15x9.5 mm	1000	31
201-20-101	15x9.5 mm	1000	33
201-20-102	15x12 mm	1000	31
201-20-102	15x12 mm	1000	33
201-20-103	15x13.3 mm	1000	31
201-20-103	15x13.3 mm	1000	33

Request quote / sample

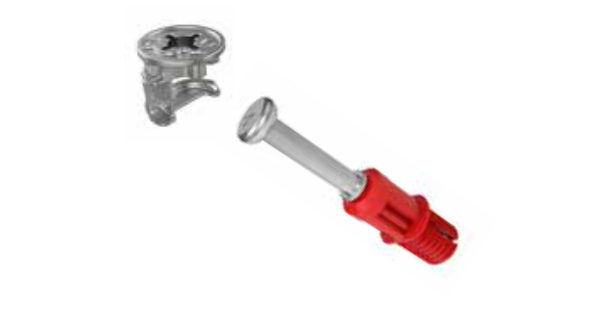

Self-dowelled Minifix Set

Code	Size	Pack	Colour
201-20-107	15x12mm-8mm	1000	31
201-20-107	15x12mm-8mm	1000	33
201-20-108	15x13.3mm-8mm	1000	31
201-20-108	15x13.3mm-8mm	1000	33
201-20-109	15x12mm-10mm	1000	31
201-20-109	15x12mm-10mm	1000	33
201-20-110	15x13.3mm-10mm	1000	31
201-20-110	15x13.3mm-10mm	1000	33

Request quote / sample

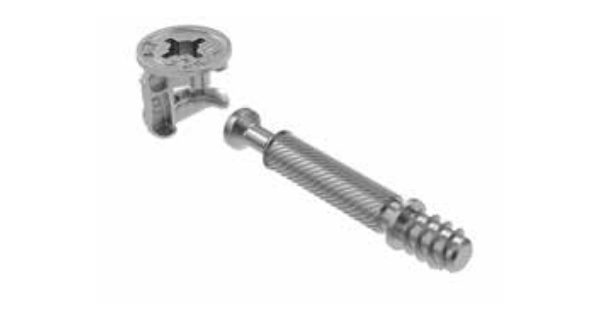

Chipboard Thread Minifix

Code	Size	Pack	Colour
201-20-113	15x9.5 mm	1000	31
201-20-113	15x9.5 mm	1000	33
201-20-114	15x12 mm	1000	31
201-20-114	15x12 mm	1000	33
201-20-115	15x13.3 mm	1000	31
201-20-115	15x13.3 mm	1000	33

Request quote / sample

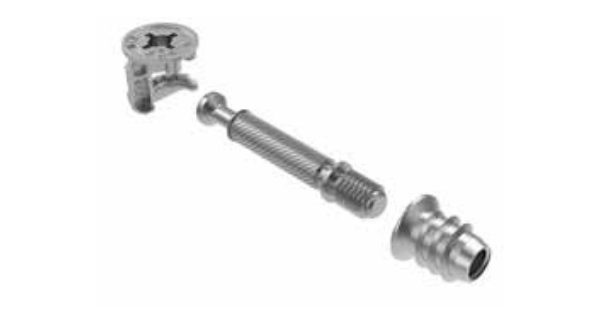

Metal Dowel Minifix - Drawer

Code	Size	Pack	Colour
201-20-104	15x9.5 mm	1000	31
201-20-104	15x9.5 mm	1000	33
201-20-105	15x12 mm	1000	31
201-20-105	15x12 mm	1000	33
201-20-106	15x13.3 mm	1000	31
201-20-106	15x13.3 mm	1000	33

Request quote / sample

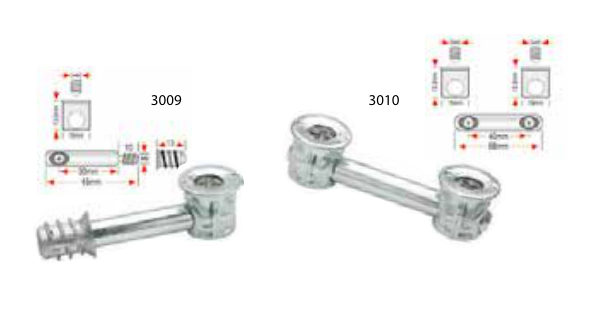

Fix Connector

Code	Size	Pack	Colour
201-20-111	Vertical - Zamak	1000	31
201-20-112	Horizontal - Zamak	1000	31

Request quote / sample

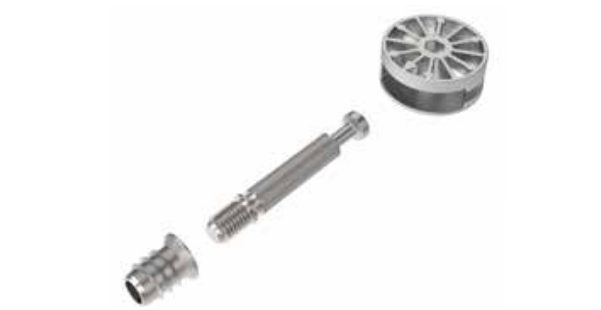

Maxifix

Code	Size	Pack	Colour
201-20-136	Head	250	31
301-20-491	M8/55mm Pin	250	31
201-20-116	With Metal Dowel	250 PCS	31

Request quote / sample

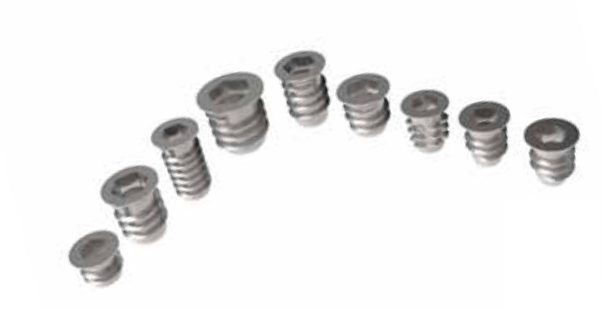

Metal Dowels

Code	Size	Pack	Colour
201-20-117	M6-8x8mm (Euro Thread)	1000	ZINC (56)
201-20-118	M6-8x11 mm	1000	ZINC (56)
201-20-119	M6-8x13 mm	1000	ZINC (56)
201-20-120	M6-8x13mm (Euro Thread)	1000	ZINC (56)
201-20-121	M6-8x16mm	1000	ZINC (56)
201-20-138	M6-8x16mm (Euro Thread)	1000	ZINC (56)
201-20-139	M6-8x20mm	1000	ZINC (56)
201-20-122	M8 - 10x12 mm	1000	ZINC (56)

Show 6 more codes

Code	Size	Pack	Colour
201-20-123	M8 - 10x15 mm	1000	ZINC (56)
201-20-124	M8 - 10x18 mm	1000	ZINC (56)
201-20-125	M10 - 13x15 mm	1000	ZINC (56)
201-20-140	M4 - 6x10 mm	1000	ZINC (56)
201-20-141	M5 - 8x13 mm	1000	ZINC (56)
201-20-142	M6 - 8x13 mm	1000	SPARKLE

Request quote / sample

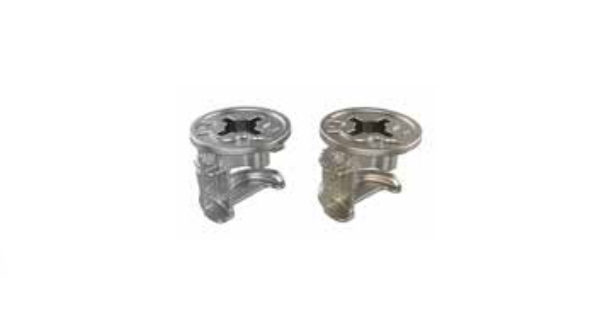

Metal Minifix Body

Code	Size	Pack	Colour
201-20-126	15x9.5 mm	2000	31
201-20-126	15x9.5 mm	2000	33
201-20-127	15x12 mm	2000	31
201-20-127	15x12 mm	2000	33
201-20-128	15x13.3 mm	2000	31
201-20-128	15x13.3 mm	2000	33
201-20-129	15x18 mm	2000	31
201-20-129	15x18 mm	2000	33

Request quote / sample

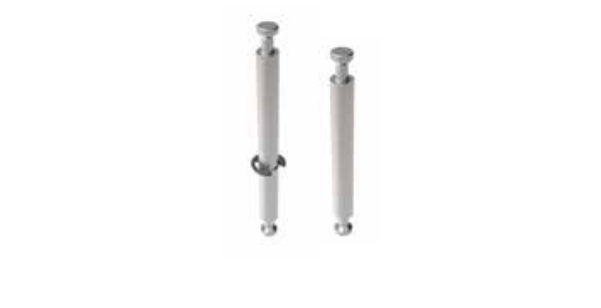

Full-length Minifix Pin

Code	Size	Pack	Colour
301-20-134	7x68mm-Without clip	250	31
301-20-135	7x68mm-With clip	250	31
301-20-136	7x86mm-Without clip	250	31
301-20-137	7x86mm-With clip	250	31

Request quote / sample

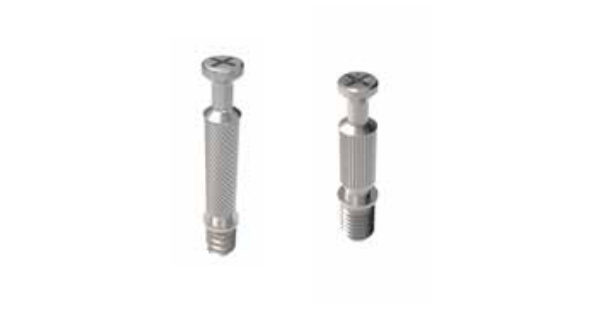

Minifix Pin

Code	Size	Pack	Colour
301-20-126	M6/24 mm	2000	31
301-20-127	M6/34 mm	2000	31
301-20-128	24mm Chipboard Thread	2000	31
301-20-129	34mm Chipboard Thread	2000	31

Request quote / sample

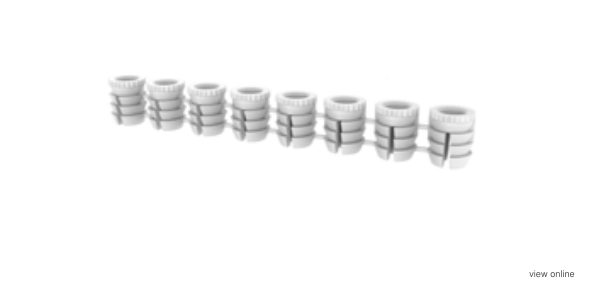

Plastic Strip Dowels

Code	Size	Pack	Colour
101-20-104	M6 - 8x11 mm	25000	27
101-20-183	M6 - 8x13 mm	25000	27
101-20-105	M6 - 10x11 mm	25000	27
101-20-106	M6 - 10x13 mm	25000	27
101-20-107	M5 - 5x10 mm	30000	27
101-20-108	M5 - 5x13 mm	30000	27

Request quote / sample

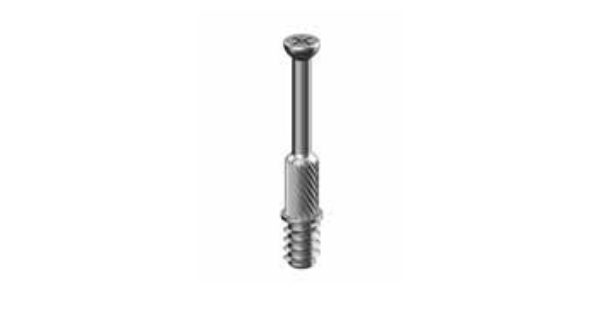

Pro Minifix Pin PZ2

Code	Size	Pack	Colour
301-20-464	M6 - 34 mm	2000	31
301-20-465	Ø6.3 - 34 mm	2000	31

Request quote / sample

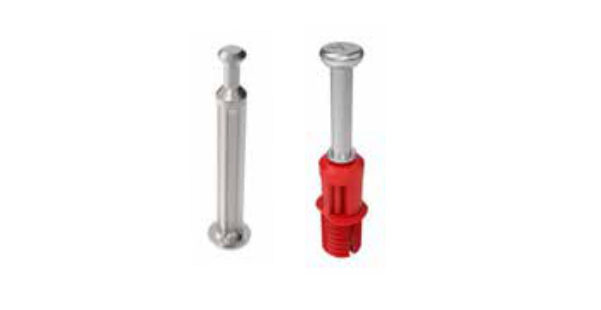

Single Sided Pin

Code	Size	Pack	Colour
301-20-131	Ø8-34 mm	2000	11
301-20-132	Ø10-34 mm	2000	11
301-20-133	52 mm	1500	31

Request quote / sample

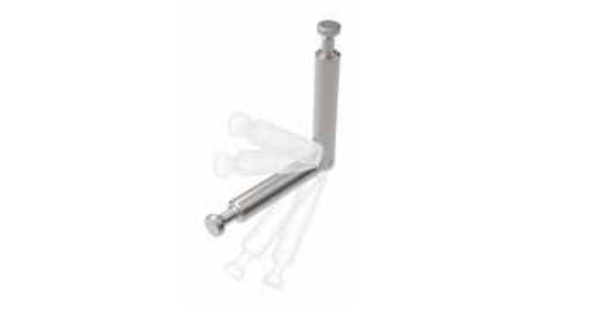

Angled Minifix Pin

Code	Size	Pack	Colour
301-20-138	7x68/68x7 mm	250	31

Request quote / sample

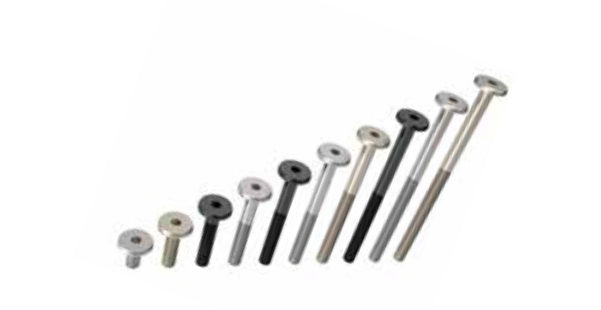

Cylinder Draw Bolt - 4 Hex

Code	Size	Pack	Colour
301-20-142	M6x10 mm	5000	31
301-20-142	M6x10 mm	5000	33
301-20-142	M6x10 mm	5000	11
301-20-143	M6x20 mm	3000	31
301-20-143	M6x20 mm	3000	33
301-20-143	M6x20 mm	3000	11
301-20-144	M6x30 mm	2000	31
301-20-144	M6x30 mm	2000	33

Show 22 more codes

Code	Size	Pack	Colour
301-20-144	M6x30 mm	2000	11
301-20-145	M6x40 mm	1500	31
301-20-145	M6x40 mm	1500	33
301-20-145	M6x40 mm	1500	11
301-20-146	M6x50 mm	1000	31
301-20-146	M6x50 mm	1000	33
301-20-146	M6x50 mm	1000	11
301-20-147	M6x60 mm	1000	31
301-20-147	M6x60 mm	1000	33
301-20-147	M6x60 mm	1000	11
301-20-148	M6x70 mm	500	31
301-20-148	M6x70 mm	500	33
301-20-148	M6x70 mm	500	11
301-20-149	M6x80 mm	500	31
301-20-149	M6x80 mm	500	33
301-20-149	M6x80 mm	500	11
301-20-150	M6x90 mm	500	31
301-20-150	M6x90 mm	500	33
301-20-150	M6x90 mm	500	11
301-20-151	M6x100 mm	500	31
301-20-151	M6x100 mm	500	33
301-20-151	M6x100 mm	500	11

Request quote / sample

Cylinder Draw Bolt - 4 Hex

Code	Size	Pack	Colour
301-20-466	Ø6.3x10 mm	5000	31
301-20-466	Ø6.3x10 mm	5000	33
301-20-466	Ø6.3x10 mm	5000	11
301-20-467	Ø6.3x20 mm	3000	31
301-20-467	Ø6.3x20 mm	3000	33
301-20-467	Ø6.3x20 mm	3000	11
301-20-468	Ø6.3x30 mm	2000	31
301-20-468	Ø6.3x30 mm	2000	33

Show 22 more codes

Code	Size	Pack	Colour
301-20-468	Ø6.3x30 mm	2000	11
301-20-469	Ø6.3x40 mm	1500	31
301-20-469	Ø6.3x40 mm	1500	33
301-20-469	Ø6.3x40 mm	1500	11
301-20-470	Ø6.3x50 mm	1000	31
301-20-470	Ø6.3x50 mm	1000	33
301-20-470	Ø6.3x50 mm	1000	11
301-20-471	Ø6.3x60 mm	1000	31
301-20-471	Ø6.3x60 mm	1000	33
301-20-471	Ø6.3x60 mm	1000	11
301-20-472	Ø6.3x70 mm	1000	31
301-20-472	Ø6.3x70 mm	1000	33
301-20-472	Ø6.3x70 mm	1000	11
301-20-473	Ø6.3x80 mm	500	31
301-20-473	Ø6.3x80 mm	500	33
301-20-473	Ø6.3x80 mm	500	11
301-20-474	Ø6.3x90 mm	500	31
301-20-474	Ø6.3x90 mm	500	33
301-20-474	Ø6.3x90 mm	500	11
301-20-475	Ø6.3x100 mm	500	31
301-20-475	Ø6.3x100 mm	500	33
301-20-475	Ø6.3x100 mm	500	11

Request quote / sample

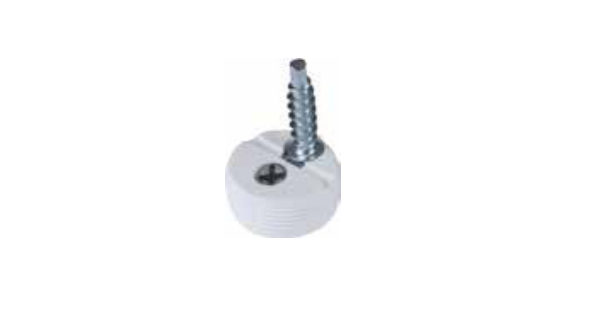

Plastic Blum Connector - Closed Base

Code	Size	Pack	Colour
101-20-109	25 mm	1000 PCS	Plastic colours

Request quote / sample

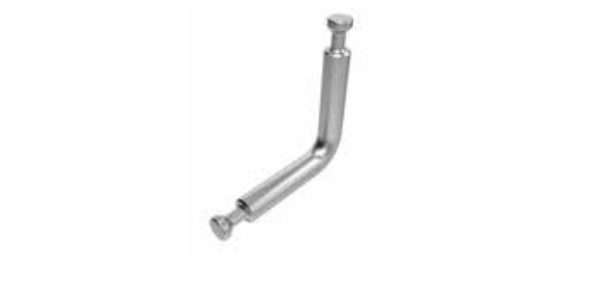

Fixed Minifix Pin 90°

Code	Size	Pack	Colour
301-20-461	34x34 mm	1000	31
301-20-462	44x44 mm	1000	31

Request quote / sample

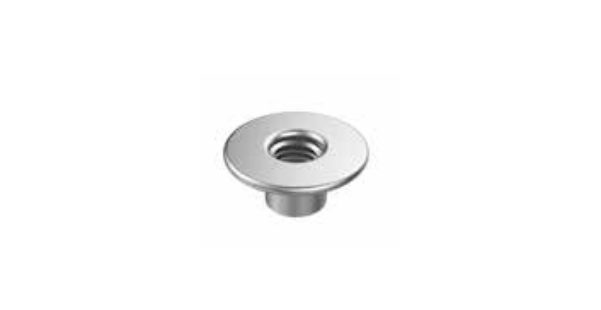

Flange Nut

Code	Size	Pack	Colour
301-20-152	M6	5000	31
301-20-153	M8	5000	31
301-20-154	M5-16	5000	31

Request quote / sample

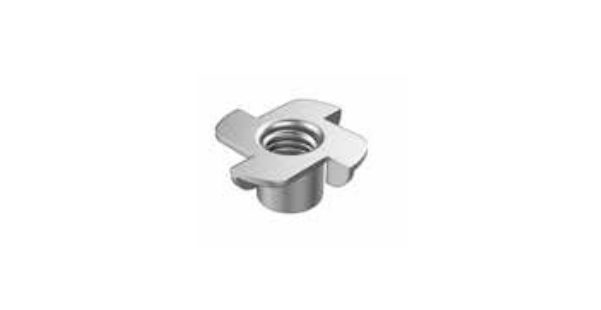

Knock-in Nut

Code	Size	Pack	Colour
301-20-158	M6	1000	31
301-20-159	M8	1000	31
301-20-161	M5-16	500	31

Request quote / sample

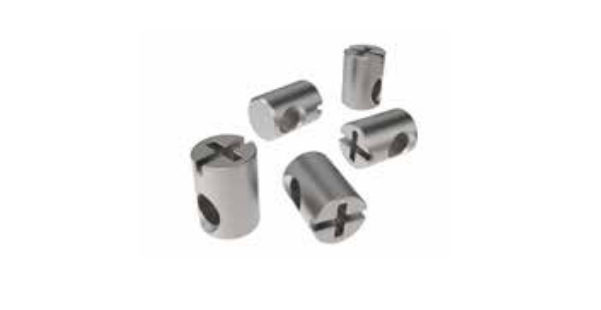

Cylinder Nut M6

Code	Size	Pack	Colour
201-20-130	10x13 mm	1000	31
201-20-131	10x14 mm	1000	31

Request quote / sample

Allen Nut M6/7

Code	Size	Pack	Colour
301-20-155	45x12, 4 mm	1000	33
301-20-156	45x18, 5 mm	1000	33

Request quote / sample
